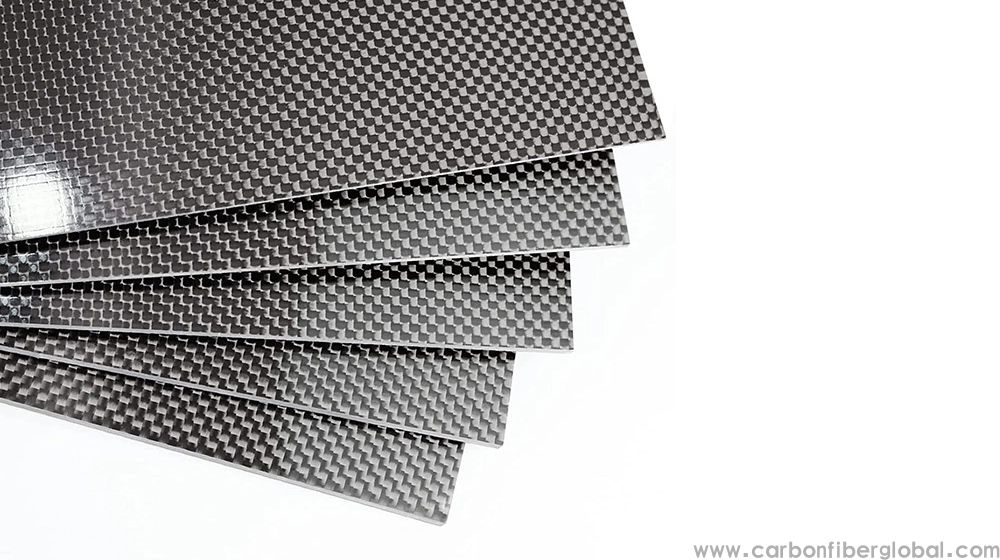

Carbon Fiber Sheets are an excellent material choice for a wide range of applications, from automotive and aerospace to sports equipment and construction. Their impressive Strength-to-Weight Ratio, durability, and versatility make them a popular choice for high-performance projects. However, choosing the right Carbon Fiber sheets for your specific project can be a daunting task due to the variety of types, sizes, and qualities available on the market. This guide will walk you through the key factors to consider when selecting Carbon fiber sheets for your project.
1. Understand Your Project’s Requirements
Before you can choose the right carbon fiber sheets, you must first understand the specific requirements of your project. Consider the following questions:
- What is the primary function of the material? Are you looking for a lightweight component, structural reinforcement, or a combination of both?
- What type of stresses will the material face? Will the carbon fiber be subjected to high temperatures, vibrations, or heavy loads?
- What is the required durability? Will the material need to withstand exposure to environmental factors like moisture, UV radiation, or chemicals?
Answering these questions will help you narrow down the type of carbon fiber sheet that is best suited for your needs.
2. Consider the Type of Carbon Fiber
Carbon fiber sheets come in various forms, and the choice between them largely depends on the strength, flexibility, and application you require. The most common types are:
Plain weave carbon fiber Sheets: These are the most widely used type of carbon fiber sheets, offering a balanced combination of strength and flexibility. Plain weave sheets are ideal for general-purpose applications where both strength and appearance are important, such as in automotive body panels or sporting equipment.
Twill Weave Carbon Fiber Sheets: These sheets have a distinct diagonal pattern and are often chosen for applications that require more flexibility and a slightly stronger material. They are commonly used in aerospace components, racing vehicles, and high-performance structures.
Unidirectional Carbon Fiber Sheets: These sheets are made from carbon fibers aligned in a single direction, providing superior strength in one direction. Unidirectional sheets are ideal for structural applications where maximum strength in a specific direction is needed, such as in the reinforcement of beams or columns in construction.
3. Strength and Stiffness
The strength and stiffness of carbon fiber sheets are critical factors, especially for high-stress applications. Carbon fiber’s strength-to-weight ratio is one of its key advantages, but not all carbon fiber sheets have the same mechanical properties.
- Tensile Strength: This refers to the maximum amount of force the material can withstand before breaking. For heavy-duty applications such as aerospace or Automotive Components, high tensile strength is crucial.
- Flexural Strength: This is the ability of the material to resist bending. If your project involves materials that will experience bending forces, such as frames or chassis, flexural strength becomes an important consideration.
To determine the appropriate level of strength and stiffness, refer to the material specifications, which should provide values for both tensile and flexural strengths.
4. Consider the Resin Matrix
Carbon fiber sheets are made by combining carbon fibers with a resin matrix. The type of resin used can greatly impact the material’s properties, such as its thermal resistance, chemical resistance, and overall durability.
Epoxy Resin: The most common resin used with carbon fiber, epoxy offers excellent strength, adhesion, and heat resistance. Epoxy-based carbon fiber sheets are ideal for aerospace, automotive, and sports equipment applications.
Polyester Resin: While cheaper than epoxy, polyester resin is less durable and has a lower resistance to heat and chemicals. It is suitable for less demanding applications, such as some marine or construction projects.
Vinyl Ester Resin: Known for its corrosion resistance, vinyl ester is used in applications that involve exposure to harsh chemicals or extreme conditions, such as in marine or chemical processing industries.
5. Thickness and size
The thickness of the carbon fiber sheet is another important factor to consider. The required thickness depends on the structural demands of your project. Thicker sheets offer greater strength and rigidity, but they may be heavier and less flexible. Conversely, thinner sheets are lighter but may not provide enough strength for heavy-duty applications.
- Common thickness ranges: Carbon fiber sheets typically come in thicknesses ranging from 0.2mm to 6mm, but custom sizes can also be manufactured for specific needs.
Additionally, make sure to choose the correct sheet size based on your project’s dimensions. Carbon fiber sheets are available in various standard sizes, such as 4’x8’ (1220mm x 2440mm), but larger or smaller sheets may be required for more specialized applications.
6. Surface Finish
The surface finish of carbon fiber sheets is another important consideration, especially if aesthetics play a role in your project. Carbon fiber can be finished in different ways:
- Glossy Finish: A polished, glossy finish offers a smooth, shiny appearance, which is often used in consumer-facing products such as automotive parts or sports equipment.
- Matte Finish: A matte finish provides a more subtle, non-reflective surface, which may be desirable for functional applications or for a more industrial look.
The finish you choose can affect both the appearance and performance of the material, so consider the desired look and application when making your decision.
7. Budget and Availability
Carbon fiber sheets are an investment, and the cost can vary significantly based on the type of carbon fiber, resin, thickness, and size. Generally, higher-performance materials like unidirectional sheets or epoxy-based carbon fiber will be more expensive.
It’s also important to consider the availability of the material. If you need custom sizes or a large quantity of sheets, make sure the supplier can accommodate your needs in a timely manner.
Conclusion
Choosing the right carbon fiber sheets for your project requires a balance between performance, cost, and the specific needs of your application. By carefully considering the type of weave, resin matrix, strength, thickness, surface finish, and budget, you can ｓｅｌｅｃｔ the optimal material that will deliver the best results. Whether you're building a high-performance vehicle, creating lightweight sports equipment, or reinforcing a structure, the right carbon fiber sheets will provide the strength, durability, and flexibility required to achieve your goals.
